beta-L-Ara4N-(KDO)2-lipid IVA

PropertiesImageOccurences in reactions

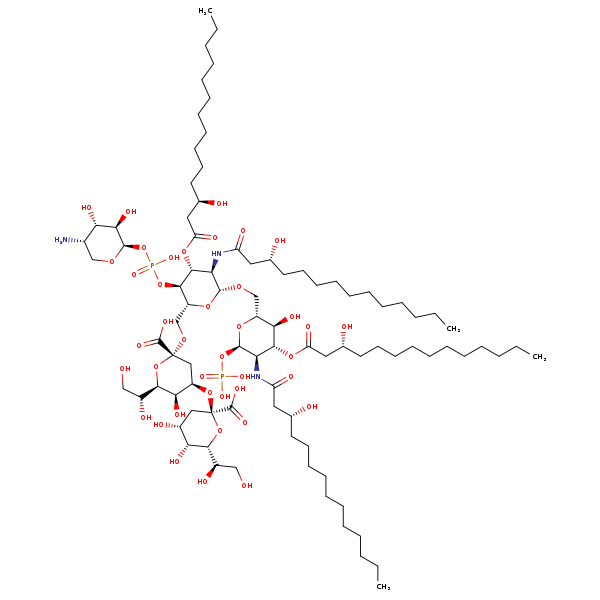

MNX_IDMNXM8338Image of MNXM8338
#reac
in my sandbox 0
in MNXref (generic)1
in models (compartimentalized) 0
formulaC89H163N3O40P2
charge0
mass1976.02881
referencechebi:61755
InChIKeyQIVGFRSPDCVBFZ-FMIAHSSQSA-N
InChIInChI=1S/C89H163N3O40P2/c1-5-9-13-17-21-25-29-33-37-41-56(95)45-67(102)91-71-81(125-69(104)47-58(97)43-39-35-31-27-23-19-15-11-7-3)76(109)65(123-84(71)131-133(115,116)117)54-121-83-72(92-68(103)46-57(96)42-38-34-30-26-22-18-14-10-6-2)82(126-70(105)48-59(98)44-40-36-32-28-24-20-16-12-8-4)80(130-134(118,119)132-85-77(110)73(106)60(90)53-120-85)66(124-83)55-122-88(86(111)112)50-64(75(108)79(128-88)63(101)52-94)127-89(87(113)114)49-61(99)74(107)78(129-89)62(100)51-93/h56-66,71-85,93-101,106-110H,5-55,90H2,1-4H3,(H,91,102)(H,92,103)(H,111,112)(H,113,114)(H,118,119)(H2,115,116,117)/t56-,57-,58-,59-,60+,61-,62-,63-,64-,65-,66-,71-,72-,73+,74-,75-,76-,77-,78-,79-,80-,81-,82-,83-,84-,85-,88-,89-/m1/s1
SMILESCCCCCCCCCCC[C@@H](O)CC(=O)N[C@H]1[C@@H](OP(=O)(O)O)O[C@H](CO[C@@H]2O[C@H](CO[C@]3(C(=O)O)C[C@@H](O[C@]4(C(=O)O)C[C@@H](O)[C@@H](O)[C@@H]([C@H](O)CO)O4)[C@@H](O)[C@@H]([C@H](O)CO)O3)[C@@H](OP(=O)(O)O[C@H]3OC[C@H](N)[C@H](O)[C@H]3O)[C@H](OC(=O)C[C@H](O)CCCCCCCCCCC)[C@H]2NC(=O)C[C@H](O)CCCCCCCCCCC)[C@@H](O)[C@@H]1OC(=O)C[C@H](O)CCCCCCCCCCC
Parent-child relations graph
 Deprecated MNXref IDs graph
Similar chemical compounds in external resources
IdentifierDescription
CHEBI:61755
chebi:61755 		beta-L-Ara4N-(KDO)2-lipid IVA
3-deoxy-alpha-D-manno-oct-2-ulopyranonosyl-(2->4)-3-deoxy-alpha-D-manno-oct-2-ulopyranonosyl-(2->6)-4-O-[(4-amino-4-deoxy-beta-L-arabinopyranosyloxy)(hydroxy)phosphoryl]-2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-beta-D-glucopyranosyl-(1->6)-2-deoxy-3-O-[(3R)-3-hydroxytetradecanoyl]-2-{[(3R)-3-hydroxytetradecanoyl]amino}-1-O-phosphono-alpha-D-glucopyranose
metacyc.compound:CPD-13352
metacycM:CPD-13352 		4'-alpha-L-Ara4N-alpha-Kdo-(2->4)-alpha-KDO-(2->6)-lipid IVA
kegg.compound:C19883
keggC:C19883 		alpha-Kdo-(2->4)-alpha-Kdo-(2->6)-[4-P-L-Ara4N]-lipid IVA
seed.compound:cpd21123
seedM:cpd21123 		alpha-Kdo-(2->4)-alpha-Kdo-(2->6)-[4-P-L-Ara4N]-lipid IVA
4'-alpha-L-Ara4N-alpha-KDO-(2->4)-alpha-KDO-(2->6)-lipid IVA
4'-alpha-L-Ara4N-alpha-Kdo-(2->4)-alpha-KDO-(2->6)-lipid IVA
CHEBI:61757
chebi:61757 		beta-L-Ara4N-(KDO)2-lipid IVA(4-)
keggC:M_C19883
seedM:M_cpd21123 		secondary/obsolete/fantasy identifier
